Straightening Machine
Advanced Solutions for Manual Straightening

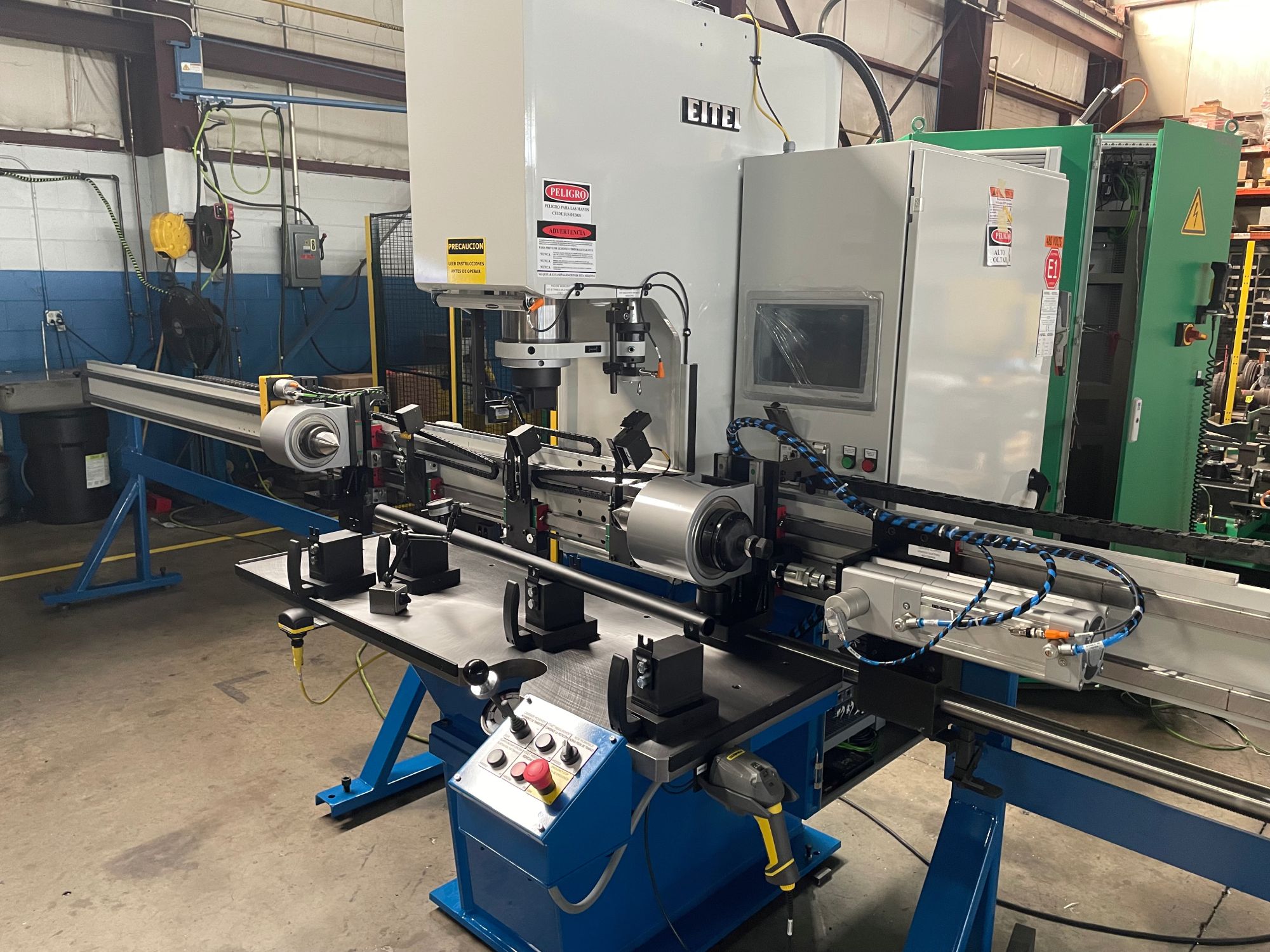

MAE-Eitel’s model RP manual straightening machine is ideal for rapidly straightening smaller workpieces with precision results. Situated on an upright press frame, the model RP uses advanced hydraulics with combined measuring and straightening capabilities in an easy-to-operate interface that allows accurate results without extensive training requirements.
Model RP Specifications
- Straightening Forces: 160 - 400 kN
- Workpiece Lengths: up to 12,000 mm
- Part Cross Section: 3 - 120 mm (solid part)
- Straightening Accuracy: 0.01 mm
MAE-Eitel’s model SRH manual straightening machine features an upright frame with powerful hydraulics that produce precision results with measuring and straightening occurring in one clamping, cutting cycle time while enhancing accuracy. Easy to use, these state-of-the-art machines don’t require specialized training to operate efficiently. Utilizing advanced design considerations, the model SRH generates less heat than other straighteners, reducing cycle time further with reduced cooldown and maintenance requirements.
Model SRH Specifications
- Straightening Forces: 400 - 20,000 kN
- Workpiece Lengths: 50 - 14,000 mm
- Part Cross Section: 8 - 500 mm
- Straightening Accuracy: < 0.01 mm
Model P-H RH Straightening Machine
MAE-Eitel’s model P-H RH manual straightening machine is a compact, by-might machine ideal for straightening smaller workpieces or those requiring comparatively low forces. Pneumatically driven, the model RP includes MAE-Eitel’s sensitive straightening stroke control in an easy-to-operate interface that allows accurate results without extensive training requirements.
Model P-H RH Specifications
- Straightening Forces: Up to 160 kN
- Workpiece Lengths: From 30 mm
- Part Cross Section: 3 - 60 mm
- Straightening Accuracy: 0.01 mm
Custom Manual Straightening Machines for Diverse Requirements
MAE-Eitel has a selection of manual straighteners, both RP and SRH models, that are in stock and ready to ship. They also maintain extensive in-house manufacturing capabilities to custom-build manual straightening equipment to meet the diverse needs of their customers, from straightening forces to installation height. MAE-Eitel’s custom solutions ensure precision results across a wide range of parts and applications, including:
- Shafts
- Tools & Standard Parts
- Cast & Forged Parts
- Profiles & Semi-Finished Products
- Tubes
- Welded Parts
Extensive Services for Superior Customer Solutions
MAE-Eitel proudly offers extensive services, from installation, maintenance, and repair services to retrofitting existing equipment and comprehensive customer service that ensures complete satisfaction.
MAE-Eitel Straightens It Out
A Global Leader in the straightening press market, MAE-Eitel stands behind the quality and dependability of their cutting-edge manual straightening machines. To learn more or to request a quote, contact the experts at MAE-Eitel today!
